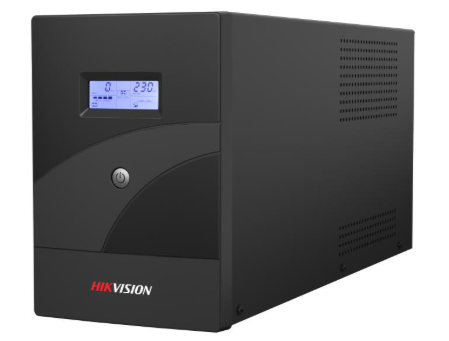

DS-UPS3000-R
Model: DS-UPS3000-R
2,648,914 sum
-10%
2,384,023 sum
3000VA/1800W,Backup UPS with built-in battery
Information
Specifications
Reviews (0)
Hikvision DS-UPS3000-R — a 3000 VA / 1800 W uninterruptible power supply (UPS) with a built-in battery. During a power outage it keeps servers, video recorders and network equipment running.
Key features: • Power: 3000 VA / 1800 W • Battery: 12 V / 9 Ah, 4 pcs • Runtime: 20–25 minutes at 500 W • Output voltage: 230 V AC ± 10%, transfer time up to 10 ms • LCD display, USB port • Surge, overload and short-circuit protection
Suitable for large surveillance systems and server rooms.
Official datasheet (PDF)
Input
Plug Type
Type B (NEMA 5-15);TYPE H;TYPE L;UK TYPE G;South Africa;Argentina Type I;Schuko
Input Frequency
50/60 Hz self-adaptive
Input Voltage Range
162VAC to 290 VAC
Power
UPS Capacity
3000 VA / 1800 W
Output
Waveform
Simulated Sinewave
Outlet Type
Type B (NEMA 5-15);TYPE H;2* SA & 2* IEC C13;Universal;TYPE L (10/16A);Argentina Type I;Schuko
Outlet Number
6;4;8
Transfer Time
≤ 10 ms
Output Frequency
50/60 Hz ± 0.5 Hz self-adaptive
Output Voltage Range
230VAC ± 10%
Battery
Battery Type
12 V/9 Ah x 4, lead-acid battery
Recharge Time
6~8 hours recover to 90% capacity
Typical Backup Time
Run time at 500w: 20-25 min
General
Dimension
145 mm × 433.5 mm × 208.5 mm (5.71" ×17.07"× 8.21" )
Operating Humidity
0% to 90% (non-condensing)
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Indicator
Alarm
Charging Mode (DC mode): Sounding every 8 seconds
Low Battery: Sounding every second
Overloading Mode: Sounding every 0.5 seconds
Fault: Continuously sounding
Display
LCD Screen
AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low
Interface
Communicate Ports
USB
Protection
Full Protection
Surge protection, Overload protection, Discharge protection, Short circuit protection
