DS-UPS2000-R

Name: DS-UPS2000-R
Brand: Hikvision
SKU: DS-UPS2000-R
Price: 1642326 UZS
Availability: InStock

Model: DS-UPS2000-R

★ ★ ★ ★ ★

0 review

1,824,807 sum -10%

1,642,326 sum

In stock

2000VA/1200W,Backup UPS with built-in battery

Request price

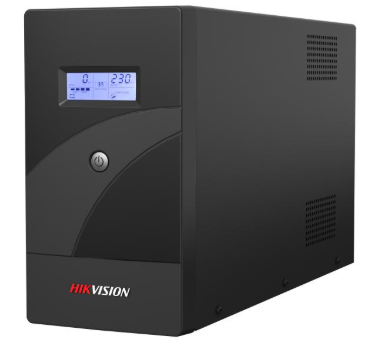

Hikvision DS-UPS2000-R — a 2000 VA / 1200 W uninterruptible power supply (UPS) with a built-in battery. The LCD display shows operating mode, load, battery level and voltage.

Key features:
• Power: 2000 VA / 1200 W
• Battery: 12 V / 9 Ah, 2 pcs
• Runtime: 15–20 minutes at 300 W
• Output voltage: 230 V AC ± 10%, transfer time up to 10 ms
• LCD display, USB port
• Surge, overload and short-circuit protection

Suitable for providing backup power to video recorders, switches and server equipment.

Official datasheet (PDF)

Input
Plug Type	Type B (NEMA 5-15);TYPE H;TYPE L;UK TYPE G;South Africa;Argentina Type I;Schuko
Input Frequency	50/60 Hz self-adaptive
Input Voltage Range	162VAC to 290 VAC ;140 VAC to 300 VAC
Power
UPS Capacity	2000 VA / 1200 W
Output
Waveform	Simulated Sinewave
Outlet Type	Type B (NEMA 5-15);TYPE H;2* SA & 2* IEC C13;Universal;TYPE L (10/16A);Argentina Type I;Schuko
Outlet Number	2;6;4
Transfer Time	≤ 10 ms
Output Frequency	50/60 Hz ± 0.5 Hz self-adaptive
Output Voltage Range	230VAC ± 10%
Battery
Battery Type	12 V/9 Ah x 2, lead-acid battery
Recharge Time	6~8 hours recover to 90% capacity
Typical Backup Time	Run time at 300w: 15-20 min
General
Dimension	124 mm × 382.42 mm × 225.1 mm (4.88" × 15.06"× 8.86" )
Operating Humidity	0% to 90% (non-condensing)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F）
Indicator
Alarm	Battery mode: Sounding every 10 seconds. Low battery : Sounding every second. Over load : Sounding every 0.5 seconds. Fault: Continuously sounding.
Display	LCD Screen AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low
Interface
Communicate Ports	USB
Protection
Full Protection	Surge protection, Overload protection, Discharge protection, Short circuit protection
