DS-QAZ1110G1-B

Name: DS-QAZ1110G1-B
Brand: Hikvision
SKU: DS-QAZ1110G1-B
Price: 1765942 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-QAZ1110G1-B

★ ★ ★ ★ ★

1 review

1,765,942 sum

In stock

Network Cabinet Speaker 10W

Request price

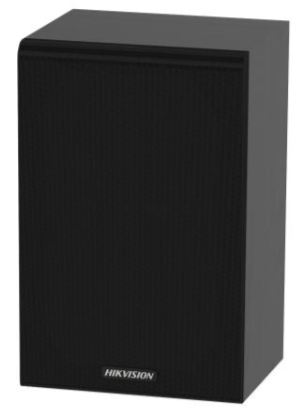

Hikvision DS-QAZ1110G1-B — a 10 W network box speaker. It broadcasts scheduled, live and emergency announcements over an IP network, and supports two-way audio and text-to-speech.

Key features:
• Rated power: 10 W, 5.25" driver
• Coverage angle: 105° horizontal, 103° vertical
• Two-way audio, Bluetooth 5.0
• Scheduled, live and emergency announcements
• One 10 W auxiliary speaker can be connected (8 Ω output)
• Power: 24 V DC, adapter included

Suitable for offices, shops, schools and hotels.

Audio
Number of Sub Speaker	24 V, 2.5 A, max. 60W: support 1* 10W sub speakers
Sub Speaker Connection Method	Impedance Input
General
Color	Black
Power	24 VDC/1.5 A
Language	41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
Material	Wooden
Bluetooth	Bluetooth 5.0, 10 m
Dimension	180.6 mm × 156 mm × 280 mm(7.11" × 6.14" × 11.02")
Packing List	Device × 1 Adapter × 1 Screw pack × 1 Installation sticker × 1 Regulatory Compliance and Safety Information × 1
Package Dimension	355 mm × 265 mm × 240 mm(13.98" × 10.43" × 9.45")
Operating Humidity	＜90% (No condensation)
With Package Weight	Approx. 3.72 kg (8.2 lb.)
Operating Temperature	-10 °C to 50 °C(14 °F to 122 °F)
Network
Client	Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
Network Protocol	IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
Interface Protocol (API)	ISAPI, ISUP, SIP, RTP,ONVIF
Speaker
SNR	83 dB
Direction	All directions
Impedance	8 Ω
Rated Power	10 W
Speaker Unit	Full frequency 5.25′′ × 1
Coverage Angle	Horizontal: 105° Vertical: 103°
Frequency Response	100 Hz to 20 kHz
Sensitivity(1 m, 1 W)	90 dB
Max. Acoustic Pressure	98 dBSPL
Approval
RF	CE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G) RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247(BT or 2.4G) ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
EMC	CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
Environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Function
Broadcast	Regular broadcast, live broadcast, emergency broadcast
NTP Timing	Support
Two-Way Audio	Support
Audio Bit Rate	G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits
Audio Algorithm	AEC、AGC、ANS、DRC
Speech Synthesis	Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
Audio File Format	MP3, WAV
Interface
API	ISAPI, ISUP, SIP,ONVIF
Reset	Support
Audio In	3.5 mm audio interface × 1 Voltage Input × 1，COM 100 V
Audio Out	Fixed resistance output × 1，phoenix terminal，8 Ω
Volume Knob	Support
LED Indicator	Green light on: normal Green light flash: intercom in progress Red light on: start or network disconnection Red light flash: upgrading
Local Storage	Built-in 4 GB EMMC (Audio file storage is 1 GB.)
Ethernet Interface	RJ45 10 M/100 M Adaptive Ethernet port × 1
Microphone
Type	MEMS
Amount	2
Sensitivity	-42 dBV/Pa
Sampling Rate	48 kHz
Quantization Bits	16 bit
Frequency Response	100 Hz to 20 kHz
Communication
Communication Method	Support wired network and bluetoothcommunication
