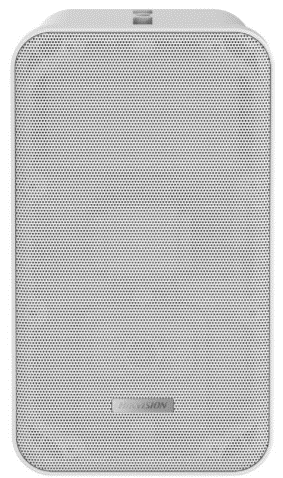

Hikvision DS-QAE0420G1-V — a 20 W analog column speaker system. Thanks to its wide coverage angle and IP66 protection, it is used for voice announcements and music both indoors and outdoors.
Key features: • Rated power: 20 W (100 V) • Drivers: 4" full-range + 0.75" high-frequency • Coverage angle: 150° horizontal, 160° vertical • Frequency range: 100 Hz – 20 kHz • Protection rating: IP66 — against rain and dust • Operating temperature: −25 °C to 55 °C • 2 L-shaped brackets included
Suitable for yards, sports grounds, factories and warehouse areas.
General
Color
White
Material
Front cover:steel mesh, back cover: plastic
Dimension
280 mm × 161.9 mm × 119.8 mm (11.02"× 6.37" × 4.72")
Packing List
Device × 1
Screw pack × 1
L-Bracket × 2
Regulatory Compliance and Safety Information × 1
Package Dimension
340 mm × 306 mm × 175 mm (13.39"× 12.05" × 6.89")
Operating Humidity
<90% (No condensation)
With Package Weight
2610.2 g (5.75 lb.)
Operating Temperature
-25 °C to 55 °C(-13 °F to 131 °F)
Speaker
Impedance
8 Ω
Rated Power
20 W
Speaker Unit
Full frequency 4′′ × 1 , high frequency 0.75′′ × 1
Coverage Angle
Horizontal: 150°
Vertical: 160°
Frequency Response
100 Hz to 20 kHz
Sensitivity(1 m, 1 W)
89.5 dB ± 3 dB
Max. Acoustic Pressure
96 dBSPL
Approval
Protection
IP66
Interface
Audio In
Green end (terminal block), constant voltage input:100 V, COM
