DS-2CD2143G2-LI

Name: DS-2CD2143G2-LI
Brand: Hikvision
SKU: DS-2CD2143G2-LI
Price: 794674 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-2CD2143G2-LI

★ ★ ★ ★ ★

1 review

882,971 sum -10%

794,674 sum

In stock

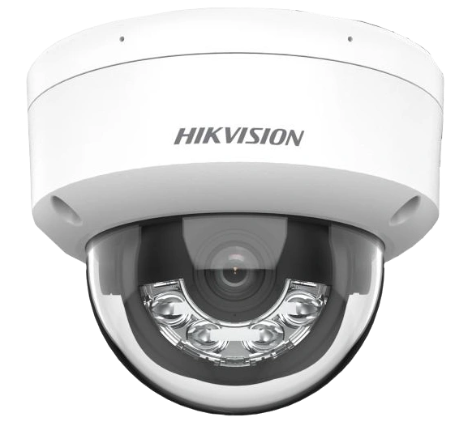

4 MP Acusense Smart Hybrid Light Fixed Dome Network Camera

Request price

Hikvision DS-2CD2143G2-LI — a 4 MP AcuSense dome IP camera with smart hybrid light. The illumination combines infrared and white light and works in 4 different modes. The housing is impact resistant and protected against rain and dust.

Key features:
• Resolution: 4 MP (2688 × 1520)
• Lens: 2.8 mm (104° field of view) or 4 mm (84°), aperture F1.6
• Smart hybrid light: infrared and white light, up to 30 m, 4 modes
• Human and vehicle detection (AcuSense)
• Face detection
• 120 dB WDR
• Protection rating IP67, IK10 — impact resistant
• Power: 12 V DC or PoE; memory card: microSD up to 512 GB

Suitable for offices, shops and building entrances.

Official datasheet (PDF)

Lens
Aperture	F1.6
Iris Type	Fixed
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Lens Mount	M12
Depth of Field	2.8 mm: 1.4 m to ∞ 4 mm: 1.5 m to ∞
Focal Length & FOV	2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
Audio
Audio Bit Rate	-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression	-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate	-2U: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering	-2U: Yes
Event
Linkage	Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,-S: trigger alarm output
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event	Face detection
SNR	≥ 52 dB
Privacy Mask	8 programmable polygon privacy masks
Image Settings	Rotate mode
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR
Image Parameters Switch	Yes
Wide Dynamic Range (WDR)	120 dB
Video
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 8 Mbps
Target Cropping	Yes
Bit Rate Control	CBR,VBR
Video Compression	Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Camera
Day & Night	IR cut filter
Image Sensor	1/3" Progressive Scan CMOS
Shutter Time	1/3 s to 1/100,000 s
Max. Resolution	2688 × 1520
Angle Adjustment	Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
General
Power	12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W
Weight	Approx. 600 g (1.3 lb.)
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Material	Base: aluminum alloy, cover: aluminum alloy
Dimension	Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
General Function	Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Package Dimension	150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
With Package Weight	Approx. 830 g (1.8 lb.)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Network
API	ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Client	iVMS-4200,Hik-Connect,Hik-Central
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Web Browser	Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Network Storage	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Simultaneous Live View	Up to 6 channels
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Interface
Alarm	-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Audio	Built-in Microphone: -2U: Arrayed dual-microphone -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Reset Key	Yes
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Illuminator
IR Wavelength	850 nm
Supplement Light Type	IR,White Light
Smart Supplement Light	Yes
Supplement Light Range	Up to 30 m
Pixel Density
DORI	2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Deep Learning Function
Perimeter Protection	Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)
