VI-K46P

Name: VI-K46P
Brand: HiLook
SKU: VI-K46P
Price: 1353889 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: VI-K46P

★ ★ ★ ★ ★

1 fikr

1 353 889 so'm

Mavjud

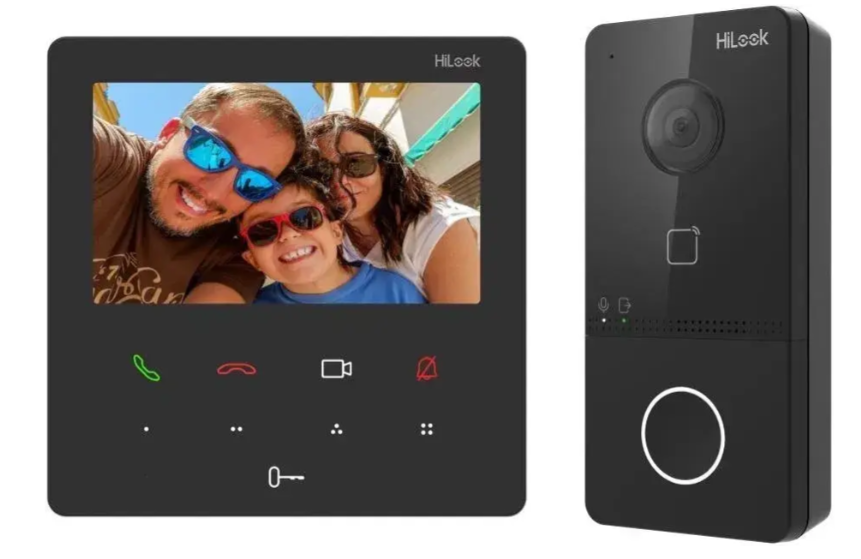

IP video intercom kit

Narx so'rash

Комплект IP-видеодомофона для виллы или дома, только одна кнопка вызова; VI-V400W × 1, VI-H440W × 1, VI-V400-RS × 1, БЛОК ПИТАНИЯ x2;

Rasmiy datasheet (PDF)

Door station/General
Button	1 physical button(s)
Dimension	138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1")
Indicator	2
Installation	Surface mounting
Power supply	IEEE802.3af, standard PoE 12 VDC
Protection level	IP65
Working humidity	10% to 95% (no-condensing)
Power consumption	＜ 10 W
Working temperature	-40 °C to 55 °C(-40 °F to 131 °F)
Application environment	Outdoor
Indoor station/General
Button	9 physical button
Language	English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek
Installation	Wall mounting, table mounting
Power supply	IEEE802.3af, Standard PoE,12 VDC
Protective level	/
Working humidity	10% to 95% (no-condensing)
Power consumption	≤ 4 W
Working temperature	-10 °C to 50 °C (14 °F to 122 °F)
Dimension (L x W x H)	200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
Application environment	Indoor
Dimension (W × H × D)	120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
Door station/Audio parameters
Audio input	1 built-in omnidirectional microphone
Audio output	1 built-in loudspeaker
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Audio compression Rate	64 Kbps
Audio compression standard	G.711 U
Door station/Video parameters
Lens	2MP HD camera
Resolution	Main stream: 1920 × 1080p Sub stream: 704 × 576p
Field of view	Horizontal: 131°, Vertical: 78°
Supplement light	IR light, up to 3 m
Wide dynamic range (WDR)	120 dB
Video Compression Standard	H.264
Door station/Device interfaces
RS-485	1
TAMPER	1
Alarm input	4
Exit button	1
Lock control	1 relay, Max. 30 VDC 2 A
Network interface	1 RJ-45, 10/100 Mbps self-adaptive
Door contact input	1
Door station/System parameters
RAM	256 MB
ROM	32 MB
Processor	Embeded high performance processor
Operation system	Linux
Indoor station/Video parameter
FOV	/
Lens	/
Resolution	/
Wide dynamic range (WDR)	/
Video compression standard	/
Door station/Network parameters
Network protocol	TCP/IP, RSTP
Indoor station/Audio parameters
Audio input	Built-in omnidirectional microphone
Audio output	Built-in loudspeaker
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Audio compression bitrate	64 Kps
Audio compression standard	G.711 U, G.711 A
Door station/Capacity parameters
Card capacity	10000
User capacity	2000
Linked indoor station capacity	16
Indoor station/Device interfaces
Alarm input	4
Network interface	1 RJ-45 10/100 Mbps self-adaptive
Indoor station/System parameters
RAM	128 MB
ROM	16 MB
Processor	Embedded processor
Operation system	Embedded Linux operation system
Indoor station/Display parameters
Type	Colorful TFT screen
Screen size	4.3-inch colorful TFT screen
Operation method	Capacitive touch screen with 9 touch buttons
Display resolution	480 × 272
Indoor station/Network parameters
Wi-Fi	Wi-Fi 802.11 b/g/n, 2.4 GHz
Network protocol	TCP/IP, SIP, RTSP
Indoor station/Capacity parameters
Notice capacity	200
Linked indoor extensions capacity	16
