NS-0310P-60

Name: NS-0310P-60
Brand: HiLook
SKU: NS-0310P-60
Price: 588648 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: NS-0310P-60

★ ★ ★ ★ ★

1 fikr

588 648 so'm

Mavjud

Discontinued

Narx so'rash

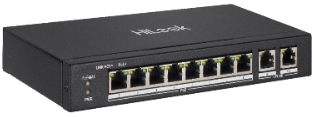

8-портовый неуправляемый POE-коммутатор Fast Ethernet, 8 портов PoE 10/100 Мбит/с и 2 гигабитных порта RJ45. Стандарт IEEE 802.3at/af для портов PoE (максимальная мощность PoE 60 Вт). Защита от перенапряжения 6 кВ для портов PoE. Дальность передачи до 250 м.

Rasmiy datasheet (PDF)

General
Shell	Metal material, fan-free design
Net Weight	0.555
Power Souce	65 W
Gross Weight	1.20
Power Supply	48 VDC, 1.35 A
Storage Humidity	5% to 95% (no condensation)
Operating Humidity	5% to 95% (no condensation)
Storage Temperature	-40°C to 85 °C -40°F to 185°F)
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Max. Power Consumption	65 W
Dimension (L × H × D)	217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)
Power Consumption in Idle	< 5 W
Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Dialing Function
Long Range	Ports 1 to 8: up to 250 m.
PoE Power Supply
PoE Port	Ports 1 to 8
PoE Standard	Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE Power Pin	Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
Max. Port Power	Ports 1 to 8: 30 W
PoE Power Budget	60 W
Network Parameters
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
Port Number	8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
Working Mode	Standard mode (default), Extend mode
Internal Cache	4 Mbits
Forwarding Mode	Store-and-forward switching
MAC Address Table	16 K
Switching Capacity	5.6 Gbps
Packet Forwarding Rate	4.1664 Mpps
Ports for Long-Distance Transmission	Ports 1 to 8
