DS-QAZ1630G1-BE

Name: DS-QAZ1630G1-BE
Brand: Hikvision
SKU: DS-QAZ1630G1-BE
Price: 1765942 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-QAZ1630G1-BE

★ ★ ★ ★ ★

1 fikr

1 765 942 so'm

Mavjud

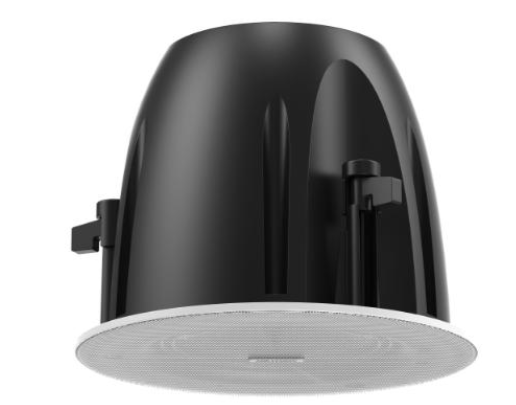

Network Frameless Ceiling Speaker PoE 30W

Narx so'rash

Hikvision DS-QAZ1630G1-BE — 30 W quvvatli ramkasiz shiftga o'rnatiladigan tarmoq karnay. Keng chastota diapazoni musiqa va e'lonlarni aniq eshittiradi, qurilma PoE orqali ishlaydi.

Asosiy xususiyatlari:
• Nominal quvvat: 30 W, maksimal ovoz bosimi 104 dB
• Dinamiklar: 1" tviter va 6,5" vufer
• Chastota diapazoni: 80 Hz – 20 kHz, qamrov burchagi 90°
• Quvvat: PoE yoki 24 V DC
• O'rnatish chuqurligi: 240 mm
• Bluetooth 5.0, 3,5 mm audio kirish, signalizatsiya kirishi
• Ikki tomonlama ovozli aloqa va nutq sintezi
• 64 GB ichki xotira (audio fayllar uchun 55 GB)

Katta zallar, savdo markazi va konferens-zallar uchun mos.

Rasmiy datasheet (PDF)

General
Power	24 VDC ± 10%, 2.5 A, max. 60 W, PoE: 50 V to 57 V, 0 A to 1.6 A, max. 71 W
Language	41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
Material	Main body: PC Base: ABS
Bluetooth	Bluetooth 5.0, 10 m
Dimension	Ø286.74 mm × 213.6 mm (11.29" × 8.41")
Packing List	Device × 1 Regulatory Compliance and Safety Information × 1 2-pin phoenix connector × 1 4-pin phoenix connector ×1
Mounting Depth	240 mm (9.45")
Package Dimension	350 mm × 350 mm × 343 mm (13.78" × 13.78" × 13.5")
Operating Humidity	＜90% (No condensation)
With Package Weight	Approx. 2.9 kg (6.49 lb.)
Operating Temperature	-10 °C to 45 °C
Mounting Hole Dimension	Ø270 mm (10.63")
Speaker
Impedance	8Ω
Rated Power	30W
Speaker Unit	1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
Coverage Angle	Conical Coverage: 90°
Frequency Response	80Hz~20kHz(-10dB)
Sensitivity(1 m, 1 W)	92dB
Max. Acoustic Pressure	104dB
Total Harmonic Distortion (THD)	≤1%
Function
Audio Bit Rate	G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps） Sampling bit width: 16 bits
Audio Algorithm	AEC、AGC、ANS、DRC
Speech Synthesis	Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
Protocol
Network Protocol	IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
Interface
Alarm	Alarm in
Reset	Support
Audio In	3.5 mm audio interface × 1
LED Indicator	Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading
Local Storage	Built-in 64 GB EMMC (Audio file storage is 55 GB.)
Network Interface	RJ45 10 M/100 M Adaptive Ethernet port × 1
Microphone
Type	MEMS
Amount	2
Sensitivity	-38dBV/Pa
Frequency Response	100 Hz to 10 kHz
