DS-QAZ14A2G1

Name: DS-QAZ14A2G1
Brand: Hikvision
SKU: DS-QAZ14A2G1
Price: 6004204 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-QAZ14A2G1

★ ★ ★ ★ ★

1 fikr

6 004 204 so'm

Mavjud

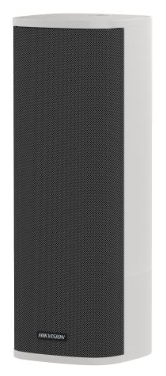

Network Column Speaker 120W

Narx so'rash

Hikvision DS-QAZ14A2G1 — 120 W quvvatli tarmoq ustunli karnay. Katta maydonlarda musiqa, oddiy, jonli va favqulodda e'lonlarni tarqatish uchun mo'ljallangan.

Asosiy xususiyatlari:
• Nominal quvvat: 120 W
• Dinamiklar: 2 ta 5,25" past chastota va 1 ta 1" yuqori chastota
• Qamrov burchagi: gorizontal 190°, vertikal 140°
• Chastota diapazoni: 100 Hz – 20 kHz
• Quvvat: 100–240 V AC
• Himoya darajasi: IP66
• Liniya kirishi, 2 ta signalizatsiya kirishi, nutq sintezi

Stadion, park, savdo markazi va korxona hududlari uchun mos.

General
Color	White
Power	100 VAC to 240 VAC
Language	41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
Material	Metal
Dimension	160 mm × 160 mm × 446.8 mm(6.3" × 6.3" × 17.59")
Packing List	Device × 1 Screw pack × 1 Support × 1 L-shaped wrench × 1 Regulatory Compliance and Safety Information × 1
Package Dimension	715 mm × 265 mm × 250 mm(28.1" × 10.4" × 9.8")
Operating Humidity	＜90% (No condensation)
With Package Weight	Approx. 8 kg(17.64 lb.)
Operating Temperature	-40°C to 60 °C(-40 °F to 140 °F)
Network
Client	Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
Network Protocol	IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
Interface Protocol (API)	ISAPI, ISUP, SIP, RTP,ONVIF
Speaker
SNR	85 dB
Direction	All directions
Impedance	4 Ω
Rated Power	120 W
Speaker Unit	Low frequency 5.25′′ × 2，high frequency 1′′ × 1
Coverage Angle	Horizontal: 190° Vertical: 140°
Frequency Response	100 Hz to 20 kHz
Sensitivity(1 m, 1 W)	86 dB
Max. Acoustic Pressure	107.5 dBSPL
Approval
EMC	CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
Protection	IP66: IEC 60529-2013
Environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Function
Broadcast	Regular broadcast, live broadcast, emergency broadcast
NTP Timing	Support
Two-Way Audio	Support
Audio Bit Rate	G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits
Audio Algorithm	AEC、AGC、ANS、DRC
Speech Synthesis	Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
Audio File Format	MP3, WAV
Interface
API	ISAPI, ISUP, SIP,ONVIF
Alarm	Alarm input × 2
Reset	Support
Audio In	Line in × 1, phoenix terminal
LED Indicator	Green light on: normal Green light flash: intercom in progress Red light on: start or network disconnection Red light flash: upgrading
Local Storage	Built-in 4 GB EMMC (Audio file storage is 1 GB.)
Ethernet Interface	RJ45 10 M/100 M Adaptive Ethernet port × 1
Microphone
Type	electret
Amount	2
Sensitivity	-42 dBV/Pa
Sampling Rate	48 kHz
Quantization Bits	16 bit
Frequency Response	100 Hz to 20 kHz
Communication
Communication Method	Support wired network communication
