DS-QAZ1325G1T

Name: DS-QAZ1325G1T
Brand: Hikvision
SKU: DS-QAZ1325G1T
Price: 2472320 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-QAZ1325G1T

★ ★ ★ ★ ★

1 fikr

2 472 320 so'm

Mavjud

Narx so'rash

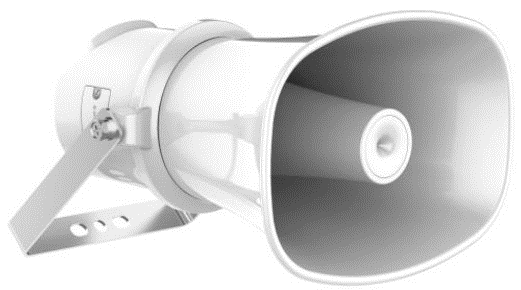

Hikvision DS-QAZ1325G1T — 25 W quvvatli tarmoq rupor karnay. Katta ochiq hududlarda oddiy, jonli va favqulodda e'lonlarni tarqatish uchun mo'ljallangan, signalizatsiya kirishi orqali voqealarga bog'lanadi.

Asosiy xususiyatlari:
• Nominal quvvat: 25 W, maksimal ovoz bosimi 124 dB
• Chastota diapazoni: 300 Hz – 8 kHz
• Quvvat: 24 V DC
• 1 ta signalizatsiya kirishi, 12 V DC chiqish
• Himoya darajasi: IP67 — yomg'ir va changdan
• Ikki tomonlama ovozli aloqa va nutq sintezi
• 4 GB ichki xotira (audio fayllar uchun 1 GB)
• Ish harorati: -30 °C dan 60 °C gacha

Korxona hududi, avtoturargoh va sport maydonlari uchun mos.

Rasmiy datasheet (PDF)

General
Color	White
Power	24 VDC , 1167mA , 28W
Language	41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
Material	Metal
Dimension	175 mm × 237 mm × 272 mm(6.9" × 9.3" × 10.7")
Packing List	Device × 1 Threading cap × 1 Regulatory Compliance and Safety Information × 1
Package Dimension	310 mm × 245 mm × 400 mm(12.2" × 9.6" × 15.6")
Operating Humidity	＜90% (No condensation)
With Package Weight	Approx. 3.4 kg (7.50 lb.)
Operating Temperature	-30 °C to 60 °C(-22 °F to 140 °F)
Network
Client	Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
Network Protocol	IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
Interface Protocol (API)	ISAPI, ISUP, SIP, RTP,ONVIF
Speaker
SNR	83 dB
Direction	70° horizontal by 100° vertical
Impedance	8 Ω
Rated Power	25 W
Frequency Response	300 Hz to 8 kHz
Sensitivity(1 m, 1 W)	110 dB
Max. Acoustic Pressure	124 dBSPL
Approval
EMC	CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
Protection	IP67
Environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Function
Broadcast	Regular broadcast, live broadcast, emergency broadcast
NTP Timing	Support
Two-Way Audio	Support
Audio Bit Rate	G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits
Audio Algorithm	AEC、AGC、ANS、DRC
Speech Synthesis	Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
Audio File Format	MP3, WAV
Interface
API	ISAPI, ISUP, SIP,ONVIF
Alarm	Alarm input ×1
Reset	Support
Power Output	12 VDC, 25 mA(max.)
Local Storage	Built-in 4 GB EMMC (Audio file storage is 1 GB.)
Ethernet Interface	RJ45 10 M/100 M Adaptive Ethernet port × 1
Microphone
Type	electret
Amount	2
Sensitivity	-42 dBV/Pa
Sampling Rate	48 kHz
Quantization Bits	16 bit
Frequency Response	100 Hz to 20 kHz
Communication
Communication Method	Support wired network communication
