DS-QAZ1206G1-BE

Name: DS-QAZ1206G1-BE
Brand: Hikvision
SKU: DS-QAZ1206G1-BE
Price: 882971 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-QAZ1206G1-BE

★ ★ ★ ★ ★

1 fikr

882 971 so'm

Mavjud

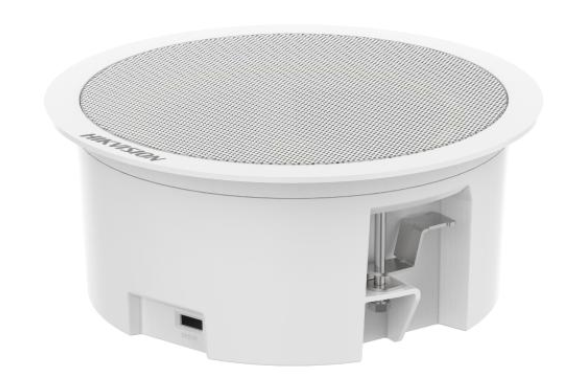

Network Ceiling Speaker 6W

Narx so'rash

Hikvision DS-QAZ1206G1-BE — 6 W quvvatli tarmoq shift karnayi. PoE+ yoki 12 V DC orqali ishlaydi va IP tarmoq orqali musiqa hamda muntazam, jonli, favqulodda e'lonlarni eshittiradi.

Asosiy xususiyatlari:
• Nominal quvvat: 6 W, 5" dinamik
• Quvvat: PoE+ (802.3at) yoki 12 V DC
• Konussimon qamrov: 130°, maksimal ovoz bosimi 100 dB
• Bitta 6 W li qo'shimcha karnay ulash mumkin
• Bluetooth 5.0, raqamli shovqin kamaytirish
• 2 ta signal kirishi, 3,5 mm audio kirish
• O'rnatish chuqurligi: 127 mm

Ofis, savdo markazi, klinika va mehmonxonalar uchun mos.

Rasmiy datasheet (PDF)

Audio
Number of Sub Speaker	PoE+（802.3at） 25W: support 1* 6W sub speakers 12 V, 1.5 A, max. 18W: support 1* 6W sub speakers
Sub Speaker Connection Method	Impedance Input
General
Color	White
Power	PoE: 802.3at，12 VDC/1.5 A
Language	41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
Material	Device body: plastic; Mesh cover: metal
Bluetooth	Bluetooth 5.0, 10 m
Dimension	Ø179 mm × 73.5 mm (Ø7.05" × 2.89") (Hole size: 160 mm）
Packing List	Device × 1 Mesh cover × 1 Regulatory Compliance and Safety Information × 1
Mounting Depth	127 mm (5")
Package Dimension	255 mm × 243 mm × 175 mm (10.04" × 9.57" × 6.89")
Operating Humidity	＜90% (No condensation)
With Package Weight	Approx. 0.5 kg (1.1 lb.)
Operating Temperature	-10 °C to 50 °C(14 °F to 122 °F)
Mounting Hole Dimension	Ø160 mm (6.30")
Network
Client	Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
Network Protocol	IPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
Interface Protocol (API)	ISAPI, ISUP, SIP, RTP,ONVIF
Speaker
SNR	82 dB
Direction	All directions
Impedance	8 Ω
Rated Power	6 W
Speaker Unit	Full frequency 5′′ × 1
Coverage Angle	Conical Coverage: 130°
Frequency Response	300 Hz to 15 kHz
Sensitivity(1 m, 1 W)	93 dB
Max. Acoustic Pressure	100 dBSPL
Approval
RF	CE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G) RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247(BT or 2.4G) ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
EMC	CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
Environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Function
Broadcast	Regular broadcast, live broadcast, emergency broadcast
NTP Timing	Support
Audio Bit Rate	G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits
Audio Algorithm	AEC、AGC、ANS、DRC
Speech Synthesis	Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
Audio File Format	MP3, WAV
Functions
Audio Function	Support digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality.
Interface
API	ISAPI, ISUP, SIP,ONVIF
Alarm	Alarm input × 2
Audio In	3.5 mm audio interface × 1
Audio Out	fixed resistance output × 1，phoenix terminal，8 Ω *The primary speaker(6 W, 8 Ω) can be connected to a maximum of 1 secondary speaker(6 W, 8 Ω).
Local Storage	Built-in 4 GB EMMC (Audio file storage is 1 GB.)
Ethernet Interface	RJ45 10 M/100 M Adaptive Ethernet port × 1
Communication
Communication Method	Support wired network and bluetoothcommunication
