DS-QAZ1110G1R-BE

Name: DS-QAZ1110G1R-BE
Brand: Hikvision
SKU: DS-QAZ1110G1R-BE
Price: 1765942 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-QAZ1110G1R-BE

★ ★ ★ ★ ★

1 fikr

1 765 942 so'm

Mavjud

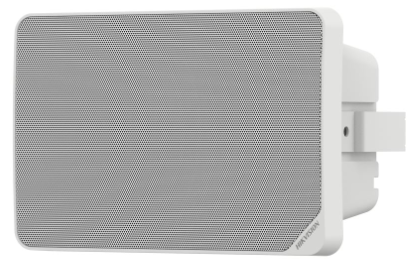

Network Cabinet Speaker POE 10W

Narx so'rash

Hikvision DS-QAZ1110G1R-BE — PoE orqali ishlaydigan 10 W li tarmoq korpusli karnay. Bitta tarmoq kabeli ham ma'lumot, ham quvvat uzatadi, shuning uchun alohida quvvat bloki shart emas. Muntazam, jonli va favqulodda e'lonlarni qo'llaydi.

Asosiy xususiyatlari:
• Nominal quvvat: 10 W, 5,25" dinamik
• Quvvat: PoE (IEEE 802.3at)
• Qamrov burchagi: gorizontal 135°, vertikal 130°
• Ikki tomonlama ovozli aloqa, Bluetooth 5.0
• Ovoz balandligi tugmasi, holat indikatori
• Ish harorati: −30 °C dan 60 °C gacha

Ofis, ombor, maktab va savdo zallari uchun mos.

General
Color	White or black appearance optional
Power	PoE(IEEE 802.3at class 4)
Language	41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
Material	Main body&Front cover：plastic, bracket: metal
Bluetooth	Bluetooth 5.0, 10 m
Dimension	268.4 mm × 180.4 mm × 125.12 mm (10.57" × 7.1" × 4.93")
Packing List	Device × 1 U-shaped bracket × 1 Screw pack × 1 Installation sticker × 1 Regulatory Compliance and Safety Information × 1
Package Dimension	340 mm × 306 mm × 180 mm (13.39" × 12.05" × 7.09")
Operating Humidity	＜90% (No condensation)
With Package Weight	Approx. 2.2 kg (4.8 lb.)
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Network
Client	Hik-Partner Pro, iVMS-4200, Hik-Connect, HikCentral Professional
Network Protocol	IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
Interface Protocol (API)	ISAPI, ISUP, SIP, RTP,ONVIF
Speaker
SNR	83 dB
Direction	All directions
Impedance	8 Ω
Rated Power	10 W
Speaker Unit	5.25′′ × 1
Coverage Angle	Horizontal: 135° Vertical: 130°
Frequency Response	130 Hz to 17.5 kHz
Sensitivity(1 m, 1 W)	90 dB
Max. Acoustic Pressure	100 dBSPL
Approval
RF	CE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G) RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247(BT or 2.4G) ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
EMC	CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
Environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Function
Broadcast	Regular broadcast, live broadcast, emergency broadcast
NTP Timing	Support
Two-Way Audio	Support
Audio Bit Rate	G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits
Audio Algorithm	AEC、AGC、ANS、DRC
Speech Synthesis	Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
Audio File Format	WAV、MP3、MP2、AAC
Interface
API	ISAPI, ISUP, SIP,ONVIF
Reset	Support
Audio In	3.5 mm audio interface × 1
Volume Knob	Support
LED Indicator	Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading
Local Storage	Built-in 64 GB EMMC (Audio file storage is 55 GB.)
Ethernet Interface	RJ45 10 M/100 M Adaptive Ethernet port × 1
Microphone
Type	electret
Amount	2
Sensitivity	-42 dBV/Pa
Sampling Rate	48 kHz
Quantization Bits	16 bit
Frequency Response	100 Hz to 18 kHz
Communication
Communication Method	Support wired network and bluetooth communication
