DS-QAZ0610G1-S

Name: DS-QAZ0610G1-S
Brand: Hikvision
SKU: DS-QAZ0610G1-S
Price: 647512 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-QAZ0610G1-S

★ ★ ★ ★ ★

1 fikr

647 512 so'm

Mavjud

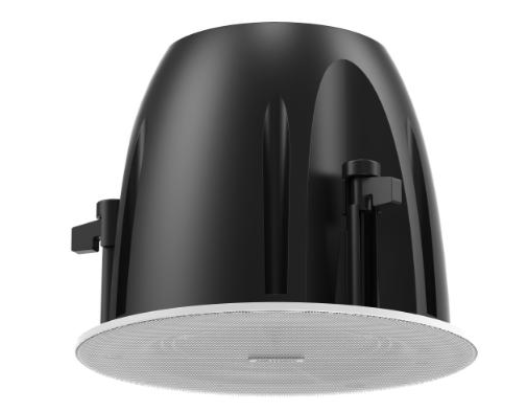

Frameless Ceiling Sub Speaker 10W

Narx so'rash

Hikvision DS-QAZ0610G1-S — ramkasiz shiftga o'rnatiladigan 10 W li qo'shimcha karnay. Ikki dinamikli (tvitter va vufer) tuzilishi tufayli keng chastotali ovoz beradi.

Asosiy xususiyatlari:
• Nominal quvvat: 10 W, 8 Ω
• Dinamiklar: 1" tvitter va 6,5" vufer
• Konussimon qamrov: 88°
• Chastota diapazoni: 120 Hz – 20 kHz
• Maksimal ovoz bosimi: 98 dB
• O'rnatish chuqurligi: 240 mm

Rasmiy datasheet (PDF)

General
Language	5 languages: English, French, Spanish, German, Italian
Material	Main body: PC Base: ABS
Dimension	φ242.78mm X 192.7mm
Packing List	Device × 1 Regulatory Compliance and Safety Information × 1 2-pin phoenix connector × 1 4-pin phoenix connector ×1
Mounting Depth	240 mm (9.45")
Package Dimension	305mm×305mm×315mm
Operating Humidity	＜90% (No condensation)
With Package Weight	Approx. 2.9 kg (6.49 lb.)
Operating Temperature	-10 °C to 45 °C
Mounting Hole Dimension	Ø225 mm (8.86")
Speaker
Impedance	8Ω
Rated Power	10W
Speaker Unit	1* 1.0-inch tweeter and 1* 6.5-inch woofer
Coverage Angle	Conical Coverage: 88°
Frequency Response	120Hz~20kHz(-10dB)
Sensitivity(1 m, 1 W)	89dB
Max. Acoustic Pressure	98dB
Total Harmonic Distortion (THD)	≤1%
Interface
Voltage Input	100V × 2
