DS-QAZ0203G1-S

Name: DS-QAZ0203G1-S
Brand: Hikvision
SKU: DS-QAZ0203G1-S
Price: 412053 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-QAZ0203G1-S

★ ★ ★ ★ ★

1 fikr

412 053 so'm

Mavjud

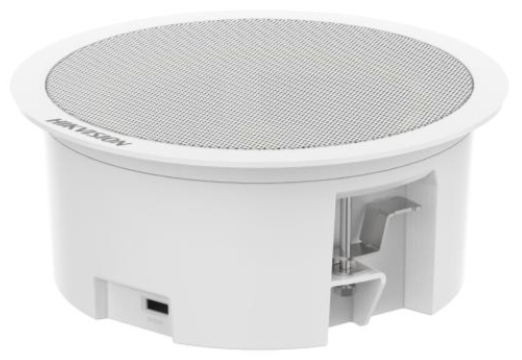

Ceiling Secondary Speaker 3W

Narx so'rash

Hikvision DS-QAZ0203G1-S — 3 W quvvatli qo'shimcha (ikkilamchi) shift karnayi. Asosiy shift karnayiga ulanadi; bitta 3 W li asosiy karnayga 3 tagacha shunday karnay ulash mumkin.

Asosiy xususiyatlari:
• Nominal quvvat: 3 W, 8 Ω
• Konussimon qamrov: 130°
• Chastota diapazoni: 300 Hz – 15 kHz
• Maksimal ovoz bosimi: 97 dB
• O'rnatish chuqurligi: 91 mm

Rasmiy datasheet (PDF)

General
Color	White
Material	Device body: plastic; Mesh cover: metal
Dimension	Ø179 mm × 77.5 mm (Ø7.05" × 3.05") (Hole Size: 160 mm)
Packing List	Device × 1 Mesh cover × 1 Regulatory Compliance and Safety Information × 1
Mounting Depth	91 mm (3.58")
Package Dimension	255 mm × 243 mm × 175 mm (10.04" × 9.57" × 6.89")
Operating Humidity	＜90% (No condensation)
With Package Weight	Approx. 0.45 kg (0.99 lb.)
Operating Temperature	10 ℃ to 50 ℃
Mounting Hole Dimension	Ø160 mm (6.30")
Speaker
SNR	82 dB
Direction	All directions
Impedance	8 Ω
Rated Power	3 W
Coverage Angle	Conical Coverage: 130°
Frequency Response	300 Hz to 15 kHz
Sensitivity(1 m, 1 W)	93 dB
Max. Acoustic Pressure	97 dBSPL
Interface
Audio In	Fixed resistance input × 1，8 Ω *The primary speaker(3 W, 8 Ω) can be connected to a maximum of 3 secondary speakers(3 W, 8 Ω).
