DS-KV6114-MWBE1

Name: DS-KV6114-MWBE1
Brand: Hikvision
SKU: DS-KV6114-MWBE1
Price: 1271479 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-KV6114-MWBE1

★ ★ ★ ★ ★

1 fikr

1 271 479 so'm

Mavjud

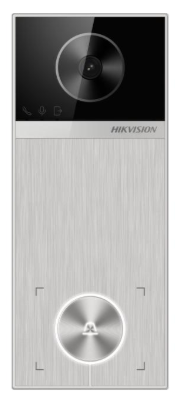

Villa door station

Narx so'rash

Высокое разрешение 4 Мп и угол обзора 150°. 2 замка управления. Несколько способов разблокировки: карта, Bluetooth, Hik-Connect, комнатная станция. Запись и воспроизведение видео через Hik-Connect или веб-интерфейс ПК.

Rasmiy datasheet (PDF)

General
Button	1 physical button
Battery	/
Language	English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
Material	Front Shell and Rear Shell Material: Plastic Viewing Window Panel Material: Glass Metal Version Metal Panel: Aluminum Alloy
Indicator	3
Installation	Surface mounting
Power supply	12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
Protective level	IP65
Working humidity	10% to 90% (no-condensing)
Power consumption	＜ 10 W
Power Supply Output	Max. 12 VDC, 1 A
Working temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Application environment	Outdoor
Dimension (W × H × D)	164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97")
Capacity
Card capacity	6000
Face capacity	/
User capacity	2000
Application
Playback	Support
Mobile APP	Hik-Connect
Call Elevator	Support
Smart Features	Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)
Motion Detection	Support
Authentication
Card type	M1 Card
Authentication mode	Card, Bluetooth, Hik-Connect, indoor station
Card reading distance	M1card：2 to 2.5 cm
Card reading frequency	13.56 MHz
Audio parameters
Audio input	1 built-in omnidirectional microphone
Audio output	1 built-in loudspeaker
Audio quality	Noise suppression and echo cancellation
Audio Performance	50cm 80dB (Maximum: 50cm 83dB)
Audio Sample Rate	16kHz、8kHz
Volume adjustment	Adjustable
Audio compression bitrate	8~64 Kps
Audio compression standard	G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
Video parameters
FOV	Horizontal: 150°; Vertical: 75°
Lens	1
Resolution	Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
Supplement light	IR light, up to 3 m
Wide dynamic range (WDR)	Support 120 dB
Video compression standard	H.264; H.265; MJPEG
Device interfaces
USB	/
RS-485	1
TAMPER	1
TF card	Support TF card, up to 128 G
Wiegand	/
Alarm input	4, (include Exit button and Door contact input)
Exit button	1
Alarm output	/
Lock control	2 relay, Max. 30 VDC 2 A
Network interface	1 RJ-45, 10/100 Mbps self-adaptive
Door contact input	1
Supported TF Format	FAT32;exFAT
System parameters
Processor	Embeded high performance processor
Operation system	Linux
Network parameters
3G/4G	/
Wi-Fi	2.4G
Bluetooth	Supported
Wi-Fi Type	WiFi 6
Wi-Fi Protocol	IEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax
Network protocol	TCP/IP, RTSP, ipv6,onvif
