DS-KIS603-P

Name: DS-KIS603-P
Brand: Hikvision
SKU: DS-KIS603-P
Price: 1671759 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-KIS603-P

★ ★ ★ ★ ★

1 fikr

1 671 759 so'm

Mavjud

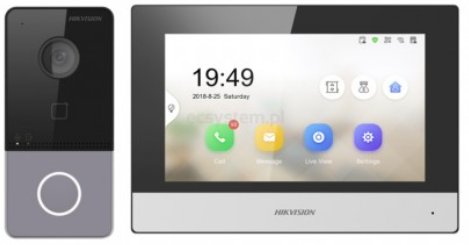

IP Video Intercom Kit

Narx so'rash

Комплект IP-видеодомофона для виллы или дома, только одна кнопка вызова, DS-KV6113-WPE1(B) x1 DS-KH6320-WTE1 x1, Блок питания x 2шт.

Rasmiy datasheet (PDF)

Door station/General
Dimension	138 mm × 65 mm × 27 mm
Indicator	2
Installation	Surface mounting
Power supply	IEEE802.3af, standard PoE 12 VDC
Protection level	IP65
Working humidity	10% to 95%
Power consumption	＜ 10 W
Working temperature	-40° C to 53° C(-40° F to 127.4° F)
Indoor station/General
Button	/
Language	English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
Installation	Surface mounting
Power supply	IEEE802.3af, Standard PoE,12 VDC
Protective level	/
Working humidity	10% to 90% (no-condensing)
Power consumption	≤ 12 W
Working temperature	-10 °C to 50 °C (14 °F to 122 °F)
Application environment	Indoor
Dimension (W × H × D)	200 mm × 140 mm × 23.3 mm (7.87" × 5.51" × 0.92")
Door station/Audio parameters
Audio input	Built-in omnidirectional microphone
Audio output	Built-in loudspeaker
Audio quality	Noise suppression and echo cancellation
Audio compression Rate	64 Kbps
Audio compression standard	G711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
Door station/Video parameters
WDR	True WDR
Camera	2MP HD camera
Stream	Main stream: 1080p@25fps, 720p@25fps Sub stream: 720@25fps,480@25fps
Night vision	Low illumination IR supplement mode:3 m
Field of view	Horizontal: 131° Vertical: 78°
Motion detection	Support
Flash-avoid frequency	50 Hz, 60 Hz
Backlight compensation	Support
Digital noise reduction	Support
Video Compression Standard	H.264; H.265; MJPEG
Door station/Device interfaces
RS-485	1
Alarm input	4
TAMPER switch	1
Debugging port	1
Door station/System parameters
RAM	256MB
Flash	32 MB
Operation system	Embedded Linux operation system
Indoor station/Video parameter
FOV	/
Lens	/
Resolution	/
Wide dynamic range (WDR)	/
Video compression standard	/
Door station/Network parameters
Wired network	10/100 Mbps Ethernet
Network protocol	TCP/IP, RTSP, IPV6,ONVIF
Indoor station/Audio parameters
Audio input	1 built-in omnidirectional microphone
Audio output	1 built-in loudspeaker
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Audio compression Rate	64 Kbps
Audio compression standard	G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Indoor station/Device interfaces
USB	/
Relay	2 relays, Max. 30VDC 0.3A
RS-485	1
TAMPER	/
TF card	Support TF card, up to 128 G
Alarm input	8
Alarm output	/
Debugging port	1
Network interface	1 RJ-45 10/100Mbps self-adaptive
Power supply output	Max. 12VDC 0.2 A (Only when powered by PoE)
Indoor station/System parameters
RAM	128 MB
ROM	32 MB
Processor	Embedded high performance processor
Operation system	Embedded Linux operation system
Indoor station/Display parameters
Type	Colorful TFT screen
Resolution	1024 × 600
Screen size	7-inch colorful TFT screen
Operatiing method	Capacitive touch screen
Indoor station/Network parameters
3G/4G	/
Wi-Fi	WiFi 802.11b/g/n
Bluetooth	Reserved
Network protocol	TCP/IP, RTSP, SIP, IPv6, ONVIF
Indoor station/Capacity parameters
Notice capacity	200
Linked doorphone capacity	17
Linked network camera capacity	16
Linked indoor extensions capacity	16
