DS-7604NI-Q1

Name: DS-7604NI-Q1
Brand: Hikvision
SKU: DS-7604NI-Q1
Price: 688718 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-7604NI-Q1

★ ★ ★ ★ ★

1 fikr

765 242 so'm -10%

688 718 so'm

Mavjud

Narx so'rash

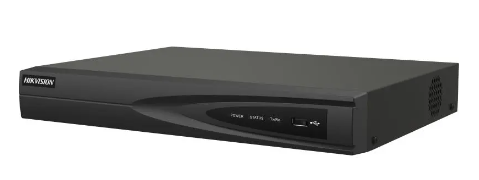

Hikvision DS-7604NI-Q1 — 4 kanalli tarmoq videoregistratori (NVR). IP kameralardan kelgan videoni qattiq diskka yozadi va monitorga 4K gacha ruxsatda HDMI orqali chiqaradi. Kichik kuzatuv tizimi uchun ixcham va tejamkor yechim.

Asosiy xususiyatlari:
• 4 ta IP kamera, yozish ruxsati 8 MP gacha
• Kiruvchi oqim: 40 Mbit/s, chiquvchi: 80 Mbit/s
• Dekodlash: 1 kanal 8 MP / 3 kanal 4 MP / 6 kanal 1080p
• H.265+ / H.265 / H.264+ / H.264
• 1 ta qattiq disk (SATA), 8 TB gacha
• HDMI (4K gacha) va VGA bir vaqtda chiqish
• Ikki tomonlama ovozli aloqa, 2 ta USB 2.0
• Quvvat: 12 V DC, 10 W gacha (disksiz)

Uy, do'kon va kichik ofis uchun mos.

Rasmiy datasheet (PDF)

General
Consumption	≤ 10 W (without HDD)
Power Supply	12 VDC, 1.5 A
Working Humidity	10 to 90 %
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Dimension (W × D × H)	320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Network
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface	1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Remote Connection	32
Decoding
Decoding Format	H.265+,H.265,H.264+,H.264
Decoding Capability	1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback	4-ch
Video and Audio
VGA Output	19201080/60Hz，12801024/60Hz，1280720/60Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 19201080/60Hz，12801024/60Hz，1280720/60Hz; HDMI/VGA simultaneous output
HDMI Output	1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output ;1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 9 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 k Ω)
IP Video Input	4-ch
Video Output Mode	HDMI/VGA simultaneous output
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	80 Mbps
Auxiliary Interface
SATA	1 SATA interface
Capacity	Up to 8 TB capacity for each disk
USB Interface	2 × USB 2.0
Motion Detection 2.0
Human/Vehicle Analysis	1-ch;4-ch
