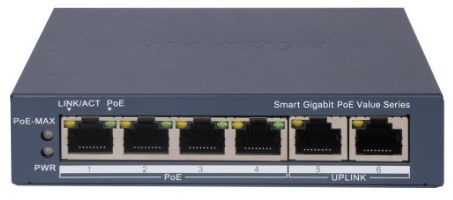

DS-3E1506P-EI/M

Name: DS-3E1506P-EI/M
Brand: Hikvision
SKU: DS-3E1506P-EI/M
Price: 370848 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-3E1506P-EI/M

★ ★ ★ ★ ★

1 fikr

412 053 so'm -10%

370 848 so'm

Mavjud

4 Port Gigabit Smart POE Switch

Narx so'rash

4-портовый гигабитный интеллектуальный коммутатор PoE. 4 порта Gigabit PoE, 2 порта Gigabit RJ45. Общий бюджет мощности PoE: 45 Вт. Поддержка VLAN 802.1Q. Поддержка функции мониторинга PoE для обнаружения и перезапуска камер, которые не отвечают. Поддержка обнаружения неисправностей в кабеле для определения места повреждения. Передача PoE на расстояние до 300 м. Защита от перенапряжения 6 кВ.

General
Shell	Metal material
Net Weight	0.27 kg (0.6 lb)
Gross Weight	0.77 kg (1.7 lb)
Power Supply	54VDC, 0.92A
Surge Protection	6 kV
Installation Mode	Desk-Mounted,Wall-Mounted
Relative Humidity	5% to 95% (no condensation)
Operating Humidity	5% to 95% (no condensation)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Max. Power Consumption	50 W
Dimensions (W × H × D)	121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Power Consumption in Idle	1.8 W
Approval
EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
Chemistry	Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)
PoE Power Supply
PoE Port	PoE: Ports 1 to 4
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+)
Max. Port Power	30 W
PoE Power Budget	45 W
Software Function
HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
VLAN	VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
Long Range	Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition.
PoE Watchdog	Ports 1 to 4: auto detect and restart the cameras that do not respond.
Port Isolation	Ports 1 to 4: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Loop Prevention	Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
Link Aggregation	Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 2 aggregation group(s).
System Maintenance	Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
Network Parameters
Ports	4 × Gigabit PoE port,2 × Gigabit RJ45 port
Internal Cache	1 Mbits
MAC Address Table	2 K
Switching Capacity	14 Gbps
Packet Forwarding Rate	10.42 Mpps
