DS-3E1326P-EI

Name: DS-3E1326P-EI
Brand: Hikvision
SKU: DS-3E1326P-EI
Price: 1642326 UZS
Availability: InStock

Model: DS-3E1326P-EI

★ ★ ★ ★ ★

0 fikr

1 824 807 so'm -10%

1 642 326 so'm

Mavjud

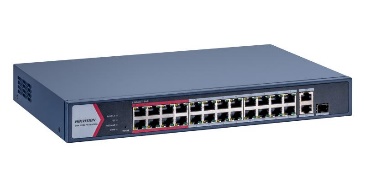

24 Port Fast Ethernet Smart POE Switch

Narx so'rash

24-портовый коммутатор Fast Ethernet с поддержкой Smart PoE. 24 порта PoE 10/100 Мбит/с, 2 гигабитных комбо-порта. Общий бюджет мощности PoE: 370 Вт. Поддержка функции мониторинга PoE для обнаружения и перезапуска камер, которые не отвечают. Передача PoE на расстояние до 300 м. Защита от перенапряжения 6 кВ.

Rasmiy datasheet (PDF)

General
Shell	Metal material
Net Weight	2.13 kg (4.7 lb)
Gross Weight	3.1 kg (6.8 lb)
Power Supply	100-240 VAC, 50/60 Hz, Max. 4 A
Surge Protection	6 kV
Installation Mode	Rack (equipped with mounting ears)
Relative Humidity	5% to 95% (no condensation)
Operating Humidity	5% to 95% (no condensation)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature	0 °C to 45 °C (0 °F to 113 °F)
Max. Power Consumption	250 W
Dimensions (W × H × D)	335.00 mm × 44.00 mm × 220.80 mm (13.19'' × 1.73'' × 8.69'')
Power Consumption in Idle	20 W
Approval
EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
PoE Power Supply
PoE Port	PoE: Ports 1 to 24
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Max. Port Power	30 W
PoE Power Budget	230 W
Software Function
HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
QoS	QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP and WRR priority scheduling modes. Support DSCP-based QoS policy.
VLAN	VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
VIP Port	Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Long Range	Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition.
PoE Watchdog	Ports 1 to 24: auto detect and restart the cameras that do not respond.
DHCP Snooping	DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
Port Isolation	Ports 1 to 26: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Loop Prevention	Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
Link Aggregation	Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group(s).
System Maintenance	Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
Network Parameters
Ports	24 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port
Internal Cache	4 Mbits
MAC Address Table	16 K
Switching Capacity	Whole-Device Performance: 14.8 Gbps Port Performance: 8.8 Gbps
Packet Forwarding Rate	Whole-Device Performance: 11.01 Mpps Port Performance: 6.55 Mpps
