DS-2CD2047G2H-LIU

Name: DS-2CD2047G2H-LIU
Brand: Hikvision
SKU: DS-2CD2047G2H-LIU
Price: 1017183 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-2CD2047G2H-LIU

★ ★ ★ ★ ★

1 fikr

1 130 203 so'm -10%

1 017 183 so'm

Mavjud

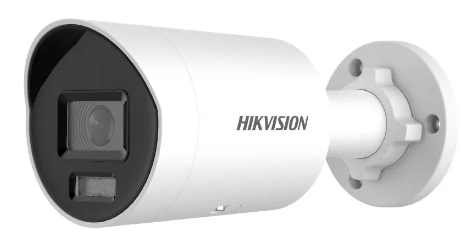

4 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera

Narx so'rash

Hikvision DS-2CD2047G2H-LIU — ColorVu va AcuSense texnologiyalariga ega 4 megapikselli mini silindr IP kamera. F1.0 diafragmali linza va aqlli gibrid yoritish kechayu kunduz rangli tasvir beradi. Ichki mikrofon ovozni yozadi, chuqur o'rganish esa odam va transport vositasini ajratadi.

Asosiy xususiyatlari:
• Ruxsat: 4 MP (2688 × 1520)
• Linza: 2,8 mm (104° ko'rish burchagi) yoki 4 mm (89,2°), diafragma F1.0
• Aqlli gibrid yoritish, ColorVu
• Odam va transport vositasini aniqlash (AcuSense)
• Ichki mikrofon
• WDR 130 dB
• Xotira kartasi: microSD 512 GB gacha
• Himoya darajasi IP67
• Yoritish masofasi: 40 m gacha
• Quvvat: 12 V DC yoki PoE

Hovli, do'kon va avtoturargoh uchun mos.

Rasmiy datasheet (PDF)

Lens
Aperture	F1.0
Iris Type	Fixed
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Lens Mount	M16
Depth of Field	2.8 mm: 2.5 m to ∞ 4 mm: 3.1 m to ∞
Focal Length & FOV	2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7° 4 mm, horizontal FOV 89.2°, vertical FOV 45.5°, diagonal FOV 108.2°
Audio
Audio Bit Rate	-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Compression	-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate	-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering	-U: Yes
Event
Linkage	Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event	Scene change detection
SNR	≥ 52 dB
Privacy Mask	4 programmable polygon privacy masks
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR
Image Parameters Switch	Yes
Wide Dynamic Range (WDR)	130 dB
Video
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 8 Mbps
Bit Rate Control	CBR,VBR
Video Compression	Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Camera
Day & Night	IR cut filter
Image Sensor	1/1.8" Progressive Scan CMOS
Shutter Time	1/3 s to 1/100,000 s
Max. Resolution	2688 × 1520
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
General
Power	12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Material	Front cover: Metal, body: Metal, bracket: Metal
Dimension	Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1")
General Function	Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Package Dimension	234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
With Package Weight	Approx. 750 g (1.7 lb.)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Network
API	Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Client	iVMS-4200,Hik-Connect,Hik-Central
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Web Browser	Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Network Storage	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Simultaneous Live View	Up to 6 channels
Approval
EMC	CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015, RCM: AS/NZS CISPR 32: 2015
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Protection	IP67: IEC 60529-2013
Environment	CE-RoHS: 2011/65/EU
Interface
Reset Key	Yes
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone	-U: Yes
Illuminator
IR Wavelength	850 nm
Supplement Light Type	IR,White Light
Smart Supplement Light	Yes
Supplement Light Range	Up to 40 m
Pixel Density
DORI	2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
Deep Learning Function
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
