DS-2CD1B67G3-LIUF/LSL SoundMax

Name: DS-2CD1B67G3-LIUF/LSL SoundMax
Brand: Hikvision
SKU: DS-2CD1B67G3-LIUF/LSL SoundMax
Price: 1218500 UZS
Availability: InStock

Model: DS-2CD1B67G3-LIUF/LSL SoundMax

★ ★ ★ ★ ★

0 fikr

1 353 889 so'm -10%

1 218 500 so'm

Mavjud

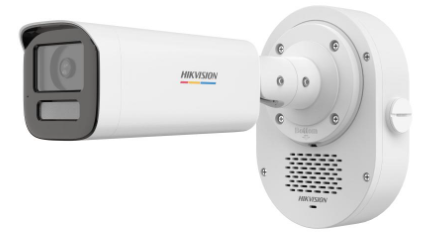

6 MP ColorVu 3.0 Fixed Bullet Network Camera

Narx so'rash

6-мегапиксельная сетевая камера ColorVu 3.0. Система SoundMax издает более громкий звуковой сигнал тревоги, чтобы отпугнуть нарушителей.HikAI-ISP обеспечивает превосходный эффект шумоподавления. Интеллектуальный гибридный светильник: сочетает ИК-подсветку и белый свет, 3 дополнительных режима освещения. Водо- и пылезащита (IP67).

Rasmiy datasheet (PDF)

Lens
Aperture	F1.0
Iris Type	Fixed
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Lens Mount	M12
Depth of Field	2.8 mm: 1.9 m to ∞ 4 mm: 2.4 m to ∞
Focal Length & FOV	2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 130° 4 mm, horizontal FOV 89°, vertical FOV 49°, diagonal FOV 105°
Audio
Audio Type	Mono sound
Audio Bit Rate	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Event
Linkage	-LIUF/S(L)(RB): trigger recording, notify surveillance center, send email, trigger capture -LIU: notify surveillance center, send email, trigger capture
Basic Event	Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
SNR	≥ 52 dB
Privacy Mask	4 programmable polygon privacy masks
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR
Wide Dynamic Range (WDR)	120 dB
Video
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Sub-Stream	50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Main Stream	50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Video Bit Rate	32 Kbps to 16 Mbps
Bit Rate Control	CBR,VBR
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Region of Interest (ROI)	1 fixed region for main stream
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Camera
Day & Night	IR cut filter
Image Sensor	1/2.4" Progressive Scan CMOS
Shutter Time	1 s to 1/100,000 s
Max. Resolution	3200 × 1800
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
General
Power	12 VDC ± 25%, 1.17 A, max. 14 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 15 W
Weight	-LIU/LS(L)(RB): Approx. 690 g (1.52 lb.) -LIUF/LS(L)(RB): Approx. 730g (1.61 lb.)
Language	English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
Material	Front cover: metal, body: plastic, bracket: plastic
Dimension	336.8 mm × 197 mm × 144.6 mm (13.26" × 7.76" × 5.69")
Flashing Light	-LSL: White Light-LSRB: Red and Blue Light
General Function	Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
Package Dimension	326 mm × 183 mm × 198 mm (12.83" × 7.20" × 7.80")
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
With Package Weight	-LIU/LS(L)(RB): Approx. 1725 g (3.80 lb.)-LIUF/LS(L)(RB): Approx. 1765g (3.89 lb.)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Network
API	ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
Client	iVMS-4200,Hik-Connect
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Web Browser	Local service: Chrome 91+, Firefox 88+, Edge 91+
Simultaneous Live View	Up to 6 channels
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety	CB: IEC 62368-1: 2014+A11
Protection	IP67: IEC 60529-2013
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Interface
Alarm	NA
Audio	NA
Reset Key	-LIU/LS(L)(RB): NA-LIUF/LS(L)(RB): YES
Built-in Speaker	Yes, rated power consumption: 2 W, max. sound pressure level: 10 cm: 109 dB.
On-Board Storage	-LIU/LS(L)(RB): NA-LIUF/LS(L)(RB): Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone	Yes,1 built-in microphone
Transducer
Detection Angle	NA
Detection Range	NA
Transducer Type	NA
Illuminator
IR Wavelength	850 nm
Supplement Light Type	IR,White Light
Smart Supplement Light	Yes
Supplement Light Range	Up to 50 m
Pixel Density
DORI	2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m 4 mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m
