DS-2CD1643G2-LIZSU

Name: DS-2CD1643G2-LIZSU
Brand: Hikvision
SKU: DS-2CD1643G2-LIZSU
Price: 1218500 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-2CD1643G2-LIZSU

★ ★ ★ ★ ★

1 fikr

1 353 889 so'm -10%

1 218 500 so'm

Mavjud

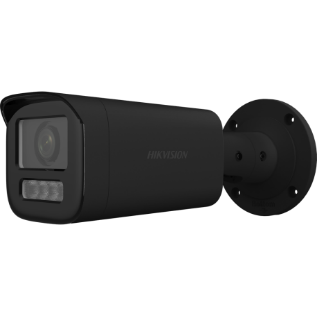

4 MP Dual Light Motion 2.0 Varifocal Bullet Network Camera

Narx so'rash

Hikvision DS-2CD1643G2-LIZSU — motorli varifokal linzali 4 megapikselli silindr korpusli IP kamera. Ko'rish burchagini 96,7° dan 29,7° gacha masofadan o'zgartirib, keng hududni ham, uzoqdagi obyektni ham kuzatish mumkin. Aqlli gibrid yoritish, odam va transport vositasini aniqlash va ichki mikrofon bor.

Asosiy xususiyatlari:
• Ruxsat: 4 MP (2560 × 1440), 1/3" CMOS sensor
• Motorli varifokal linza: 2,8–12 mm, diafragma F1.6
• Aqlli gibrid yoritish
• Odam va transport vositasini aniqlash
• WDR 120 dB, H.265+ siqish
• Ichki mikrofon, xotira kartasi 512 GB gacha
• Himoya darajasi IP67
• Yoritish masofasi: 50 m gacha
• Audio va signalizatsiya interfeysi
• Quvvat: 12 V DC yoki PoE

Hovli perimetri, avtoturargoh va ombor hududi uchun mos.

Rasmiy datasheet (PDF)

Lens
Aperture	F1.6
Iris Type	Fixed
Lens Type	Varifocal lens, motorized lens, 2.8 to 12 mm
Lens Mount	Ø14
Focal Length & FOV	2.8 to 12 mm, horizontal FOV 96.7° to 29.7°, vertical FOV 51.7° to 16.7°, diagonal FOV 114.3° to 34°
Audio
Audio Type	Mono sound
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Event
Linkage	Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, (-S model) trigger alarm output
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SNR	≥ 52 dB
Privacy Mask	4 programmable polygon privacy masks
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR
Wide Dynamic Range (WDR)	120 dB
Video
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Main Stream	50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Video Bit Rate	32 Kbps to 16 Mbps
Bit Rate Control	CBR,VBR
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Region of Interest (ROI)	1 fixed region for main stream
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Camera
Day & Night	IR cut filter
Image Sensor	1/3" Progressive Scan CMOS
Shutter Time	1/3 s to 1/100,000 s
Max. Resolution	2560 × 1440
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
General
Power	12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.9 W
Weight	Approx. 585 g (1.3 lb.)
Language	English, Ukrainian
Material	Metal & Plastic
Dimension	Ø105 mm × 252 mm (Ø4.13" × 9.92")
General Function	Heartbeat,mirror,password reset via email,password protection,anti-banding
Package Dimension	315 mm × 137 mm × 141 mm (12.40" × 5.39" × 5.55")
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
With Package Weight	Approx. 910 g (2.0 lb.)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Network
API	Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Client	iVMS-4200,Hik-Connect
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Web Browser	Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Simultaneous Live View	Up to 6 channels
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Protection	IP67: IEC 60529-2013
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Interface
Alarm	-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Audio	-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Reset Key	Yes
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone	Yes,1 built-in microphone
Illuminator
IR Wavelength	850 nm
Supplement Light Type	IR,White Light
Smart Supplement Light	Yes
Supplement Light Range	Up to 50 m
Pixel Density
DORI	D: 64.0 to 198.0 m, O: 25.4 to 78.6 m, R: 12.8 to 39.6 m, I: 6.4 to 19.8 m
