DS-2CD1347G3H-LIU

Name: DS-2CD1347G3H-LIU
Brand: Hikvision
SKU: DS-2CD1347G3H-LIU
Price: 815865 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Model: DS-2CD1347G3H-LIU

★ ★ ★ ★ ★

1 fikr

906 517 so'm -10%

815 865 so'm

Mavjud

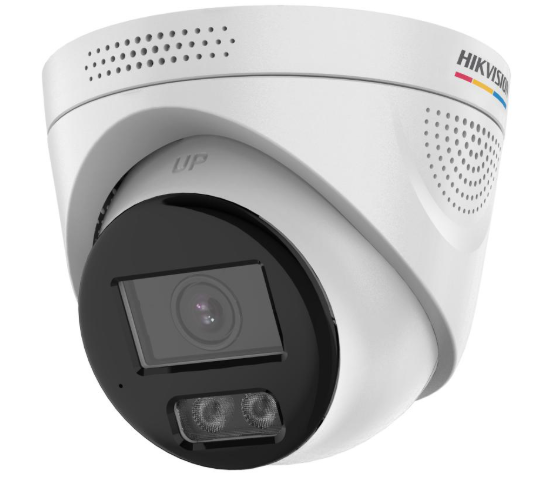

4 MP ColorVu 3.0 Fixed Turret Network Camera

Narx so'rash

Hikvision DS-2CD1347G3H-LIU — ColorVu 3.0 texnologiyali 4 megapikselli turret IP kamera. F1.0 diafragmali linza kechayu kunduz rangli tasvir beradi, HikAI-ISP esa shovqinni kamaytirib tasvirni tozaroq qiladi. Motion Detection 3.0 odam va transport vositasini aniqroq ajratadi.

Asosiy xususiyatlari:
• Ruxsat: 4 MP (2560 × 1440)
• Linza: 2,8 mm (104° ko'rish burchagi) yoki 4 mm (89,3°), diafragma F1.0
• ColorVu 3.0 — kechayu kunduz rangli tasvir
• Aqlli gibrid yoritish: infraqizil va oq yorug'lik, 3 ta rejim
• Odam va transport vositasini aniqlash (Motion Detection 3.0)
• WDR 120 dB, ichki mikrofon
• Himoya darajasi IP67
• Yoritish masofasi: 30 m gacha
• Quvvat: 12 V DC yoki PoE

Hovli, avtoturargoh va do'kon uchun mos.

Rasmiy datasheet (PDF)

Lens
Aperture	F1.0
Iris Type	Fixed
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Lens Mount	M16
Depth of Field	2.8 mm: 2.5 m to ∞ 4 mm: 2.8 m to ∞
Focal Length & FOV	2.8 mm, horizontal FOV 104°, vertical FOV 54.4°, diagonal FOV 126.7° 4 mm, horizontal FOV 89.3°, vertical FOV 48.2°, diagonal FOV 106.5°
Audio
Audio Type	Mono sound
Audio Bit Rate	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps (MP3)
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Event
Linkage	Upload to FTP,notify surveillance center,send email,trigger recording,trigger capture
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SNR	≥ 52 dB
Privacy Mask	4 programmable polygon privacy masks
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR
Wide Dynamic Range (WDR)	120 dB
Video
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Sub-Stream	50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 24 fps (768 × 432, 640 × 360)
Main Stream	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Video Bit Rate	32 Kbps to 16 Mbps
Bit Rate Control	CBR,VBR
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Region of Interest (ROI)	1 fixed region for main stream
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Camera
Day & Night	IR cut filter
Image Sensor	1/1.8" Progressive Scan CMOS
Shutter Time	1 s to 1/100,000 s
Max. Resolution	2560 × 1440
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Min. Illumination	Color: 0.0001 Lux @ (F1.0, AGC ON)
General
Power	12 VDC ± 25%, 0.64 A, max. 7.68 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.21 W
Weight	Approx. 580 g (1.3 lb.)
Language	English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
Material	Cover: PLASTIC, main body: METAL
Dimension	Ø130.1 mm × 103.1 mm (Ø5.12" × 4.06")
Flashing Light	White Light
General Function	Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
Package Dimension	170 mm × 170 mm × 160 mm (6.69" × 6.69" × 6.30")
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
With Package Weight	Approx. 800 g (1.8 lb.)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Network
API	ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Client	iVMS-4200,Hik-Connect
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Web Browser	Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
Simultaneous Live View	Up to 6 channels
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Protection	IP67: IEC 60529-2013
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
Interface
Built-in Speaker	Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB.
On-Board Storage	LIUF, LIUF/SL(RB): Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB; LIU, LIU/SL(RB): NA
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone	Yes,1 built-in microphone
Illuminator
IR Wavelength	850 nm
Supplement Light Type	IR,White Light
Smart Supplement Light	Yes
Supplement Light Range	Up to 30 m
Pixel Density
DORI	2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m
