| ANPR |
|---|
| By Camera |
All channels
Support Countries & Regions:
1. Myanmar, Philippines, Indonesia, Vietnam, Pakistan, New Zealand, Australia, Sri Lanka, Singapore, Malaysia
2. Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, The United Kingdom, Ireland, Germany, Italy, Austria, Palestine, Latvia, Lithuania, Estonia, Belgium, Luxembourg, Ukraine, Uzbekistan, Kazakhstan, Mongolia, Moldova, Kyrgyzstan, Azerbaijan, Georgia, Armenia, Albania, Kosovo, Belarus, Cyprus, Denmark, Finland, Malta, Portugal, Romania, Slovenia, Sweden, Israel, Bosnia and Herzegovina, Turkmenistan, Montenegro, Serbia, Tajikistan, Iceland, Liechtenstein
3. Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Salvador, Bolivia,
Canada, Algeria, Mexico, Panama, Costa Rica, Nigeria, Kenya, Mauritius, Tanzania, Cote d'Ivoire, South Africa, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Republic of Trinidad and Tobago, Dominica, Guatemala, Senegal, Algeria, Cameroon
4. Qatar, Kuwait, Oman, Jordan, Lebanon, Iraq, United Arab Emirates, Saudi Arabia, Bahrain, Egypt, Libya |
| Plate Attributes |
Plate number, license plate color, license plate type |
| Vehicle Attributes |
Vehicle brand, vehicle color, vehicle type |
| RAID |
|---|
| RAID Type |
RAID0, RAID1, RAID5, RAID6, RAID10
RAID and AI functions are mutually exclusive. |
| General |
|---|
| Chassis |

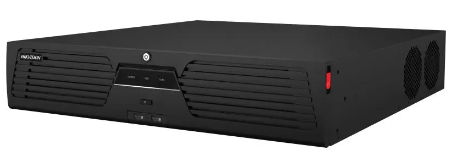

2U chassis |
| Consumption |
≤ 30 W |
| GUI Language |
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew |
| Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Working Humidity |
10% to 90% |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Dimension (W × D × H) |
442 × 459 × 92 mm (17.4"× 18" × 3.6") |
| Network |
|---|
| API |
ONVIF (profile S/G); SDK; ISAPI |
| Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connection |
128 |
| Compatible Browser |
IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| Camera Access Protocol |
ONVIF(Version 2.5), RTSP |
| Decoding |
|---|
| Stream Type |
Video, Video & Audio |
| Decoding Format |
H.265+/H.265/H.264+/H.264/MPEG4 |
| Audio Compression |
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Decoding Capability |
Enable AI by NVR: 20-ch@1080p (30 fps)
1-ch@32 MP (30 fps); 1-ch@24 MP (30 fps); 2-ch@16MP (30 fps); 3-ch@12MP (30 fps);5-ch@8 MP (30 fps); 6-ch@6 MP (30 fps);8-ch@5 MP (30 fps);10-ch@4 MP (30 fps);16-ch@2 MP (30 fps);
Disable AI by NVR: 32-ch@1080p (30 fps)
2-ch@32 MP (30 fps); 2-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 5-ch@12MP (30 fps);8-ch@8 MP (30 fps); 8-ch@6 MP (30 fps); 12-ch@5 MP (30 fps); 16-ch@4 MP (30 fps); |
| Recording Resolution |
32 MP/24 MP/16MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs. |
| Synchronous Playback |
32-ch |
| Dual-Stream Recording |
Support |
| Aux Port Window Division |
1/2/4/6/8/9/16/25/32/36 |
| Live View Window Division |
1/2/4/6/8/9/16/25/32/36 |
| AcuSearch |
|---|
| Performance |
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling 172,800 targets/day. |
| Certification |
|---|
| CE |
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
| Obtained Certification |
CE, FCC, IC |
| Cyber Security |
|---|
| Others |
Digest authentication: Support
User access log : Support
Centralized certificate management : Support
Brute force delay protection : Support |
| EN 303645 |
Support |
| Secure Boot |
Support |
| Signed Firmware |
Support |
| HTTPS Encryption |
Support |
| Password Protection |
Support |
| IP & MAC Address Filtering |
Support |
| Secure Component Verification SVC |
Support |
| Live View & Playback Stream Encryption |
Support : AES128 |
| IEEE802.1X(EAP-TLS) Network Access Control |
Support |
| Video and Audio |
|---|
| CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output |
2-ch, RCA (Linear, 1 KΩ) |
| VGA 1 Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA 2 Output |
1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| HDMI 1 Output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| IP Video Input |
32-ch |
| Video Output Mode |
HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| Target Recognition |
|---|
| Face Picture Library |
Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 15KB, total capacity ≤ 150 MB) |
| Face Picture Comparison |
4-ch face picture comparison alarm |
| Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
| Facial Detection and Analytics Performance |
1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
| Auxiliary Interface |
|---|
| SATA |
8 SATA interfaces |
| eSATA |
1 eSATA interface |
| DC 12V |
12 VDC, 1 A power output;NA |
| Capacity |
Up to 16 TB capacity for each disk |
| Ctrl 12V |
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.;NA |
| Alarm In/Out |
16/8 |
| USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Serial Interface |
RS-485 (full-duplex), RS-232, Keyboard |
| Devices and Servers |
|---|
| Heat Map Cameras |
1.heatmap data record and presentation |
| Motion Detection 2.0 |
|---|
| By NVR |
All channels for Hikvision cameras |
| By Camera |
All channels |
| Perimeter Protection |
|---|
| By NVR |
4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
Up to 12 rules in total |
| By Camera |
All channels |
| Intelligent Analytics |
|---|
| Engine |
1, engine mode is adjustable |
| AI by NVR |
Facial recognition, perimeter protection, motion detection 2.0,AcuSearch |
| AI by Camera |
Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA |
