IPC-B469HAD-LUF/SL

Name: IPC-B469HAD-LUF/SL
Brand: HiLook
SKU: IPC-B469HAD-LUF/SL
Price: 1353889 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Модель: IPC-B469HAD-LUF/SL

★ ★ ★ ★ ★

1 отзыв

1 353 889 сум

В наличии

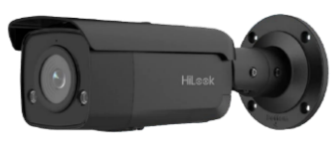

6 MP Dual Lens Stitched Wide Angle ColorVu with Smart Hybrid Light Fixed Bullet Network Camera

Запросить цену

Высокое качество изображения с разрешением 6 МП. Круглосуточное цветное изображение. Умный гибридный свет: передовые технологии с большим радиусом действия. встроенной двусторонней аудиосвязи. Поддержка встроенной памяти объемом до 512 ГБ (слот для карты SD). Поле зрения 180°. Активный стробоскоп и звуковая сигнализация для предупреждения злоумышленников.

Официальный datasheet (PDF)

Lens
Aperture	F1.0
Iris Type	Fixed
Lens Type	Fixed focal lens, 2.8 mm
Lens Mount	M12
Focal Length & FOV	2.8 mm, horizontal FOV 180°, vertical FOV 79°
Audio
Audio Type	Mono sound
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Event
Linkage	Upload to FTP, upload to memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SNR	≥ 52 dB
Privacy Mask	4 programmable polygon privacy masks
Image Settings	Rotate mode,saturation,brightness,sharpness,gain,white balance,contrast,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR
Wide Dynamic Range (WDR)	120 dB
Video
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Sub-Stream	50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432)
Main Stream	50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632)
Video Bit Rate	32 Kbps to 16 Mbps
Bit Rate Control	CBR,VBR
Video Compression	Main stream: H.265+/H.265/H.264+/H.264,, Sub-stream: H.265/H.264/MJPEG
Region of Interest (ROI)	1 fixed region for main stream
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Camera
Day & Night	24/7 color imaging
Image Sensor	1/2.5" Progressive Scan CMOS
Shutter Time	1 s to 1/100,000 s
Max. Resolution	3632 × 1632
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Min. Illumination	Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
General
Power	12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W
Weight	Approx. 560 g (1.2 lb.)
Language	English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
Material	Front cover: Metal, body: Plastic, bracket: Metal
Dimension	103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2")
Flashing Light	/SRB model: Red and Blue Light /SL model: White Light
General Function	Heartbeat,anti-banding,password protection,password reset via email
Package Dimension	260 mm × 140 mm × 115 mm (10.2" × 5.5" × 4.5")
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
With Package Weight	Approx. 835 g (1.8 lb.)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Network
API	ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
Client	iVMS-4200,HiLookVision
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Web Browser	Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+
Simultaneous Live View	Up to 6 channels
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety	CB: IEC 62368-1: 2014+A11
Protection	IP67: IEC 60529-2013
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Interface
Reset Key	Yes
Built-in Speaker	Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone	Yes,1 built-in microphone
Illuminator
IR Wavelength	850 nm
Supplement Light Type	IR,White Light
Smart Supplement Light	Yes
Supplement Light Range	Up to 30 m
Pixel Density
DORI	2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
