DS-QAZ1610G1-BE

Name: DS-QAZ1610G1-BE
Brand: Hikvision
SKU: DS-QAZ1610G1-BE
Price: 1530484 UZS
Availability: InStock
Rating: 5.0 (1 reviews)

Модель: DS-QAZ1610G1-BE

★ ★ ★ ★ ★

1 отзыв

1 530 484 сум

В наличии

Запросить цену

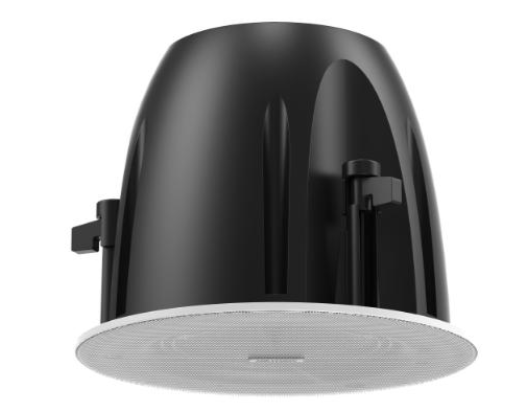

Сетевой безрамный потолочный громкоговоритель PoE 10 Вт.

Официальный datasheet (PDF)

Audio
Number of Sub Speaker	Hi-PoE/PoE++ (802.3bt) 60W: support 2* 10W sub speakers Hi-PoE/PoE++ (802.3bt) 90W: support 3* 10W sub speakers PoE midspan injector 60W: support 2* 10W sub speakers PoE midspan injector 75W: support 2* 10W sub speakers 24 V, 5 A, max. 60 W: support 3* 10W sub speakers
Secondary Speaker Connection Method	Voltage Input
General
Power	24 VDC ± 10%, 2.5 A, max. 60 W, PoE: 50 V to 57 V, 0 A to 1.6 A, max. 71 W
Language	41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
Material	Main body: PC Base: ABS
Bluetooth	Bluetooth 5.0, 10 m
Dimension	Ø242.78 mm × 192.7 mm (9.56" × 7.59")
Packing List	Device × 1 Regulatory Compliance and Safety Information × 1 2-pin phoenix connector × 1 4-pin phoenix connector ×1
Package Dimension	305 mm × 305 mm × 315 mm (12.01" × 12.01" × 12.4")
Operating Humidity	＜90% (No condensation)
With Package Weight	Approx. 2.9 kg (6.49 lb.)
Operating Temperature	-10 °C to 45 °C
Speaker
Impedance	8Ω
Rated Power	10W
Speaker Unit	1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
Coverage Angle	Conical Coverage: 88°
Frequency Response	120Hz~20kHz(-10dB)
Sensitivity(1 m, 1 W)	89dB
Max. Acoustic Pressure	98dB
Total Harmonic Distortion (THD)	≤1%
Function
Audio Bit Rate	G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps） Sampling bit width: 16 bits
Audio Algorithm	AEC、AGC、ANS、DRC
Speech Synthesis	Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
Protocol
Network Protocol	IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
Interface
Alarm	Alarm in
Reset	Support
Audio In	3.5 mm audio interface × 1
LED Indicator	Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading
Local Storage	Built-in 64 GB EMMC (Audio file storage is 55 GB.)
Network Interface	RJ45 10 M/100 M Adaptive Ethernet port × 1
Microphone
Type	MEMS
Amount	2
Sensitivity	-38dBV/Pa
Frequency Response	100 Hz to 10 kHz
